HOBOKEN PATH STATION

As January has passed I am recharged and ready to get out and start drawing again.

I started this project two and a half years ago and named it with "NYC" because that's all I set out to do, to draw the NYC subway stations. Little did I know the high rent, tiny apartments and a series of life events would eventually urged me to look for an alternative down the road - I now live in Hoboken New Jersey. I still work in the city though so I commute every day by taking the PATH train. Which brings me to my point - I am going to try to draw the PATH stations. Starting with Hoboken where I live, and also the 33rd Street station because I already drew the 34th Street subway station and I have been promising people I would complete it by adding the PATH portion one day. I think it would be helpful to illustrate how the PATH stations in Manhattan intertwine with the subway stations!

2018-02-07 - Hoboken Sketch.jpg

IT'S HERE: THE ATLANTIC AVENUE - BARCLAYS CENTER PRINT!

By popular demand, the Atlantic Avenue - Barclays Center print is finally ready! After four visits and God knows how many sketches. Check it out in our gallery and shop!

This is Project Subway NYC's second attempt to look into stations in Brooklyn, hope to do more soon. Let me know in the comment which stations you want to see, and don't forget to follow us on facebook and instagram (@projectsubwaynyc) for updates!

Atlantic Avenue - Barclays Center Poster

Atlantic Avenue - Barclays Center Poster

sketch - cad - print - sketch again

sketch - cad - print - sketch again

Atlantic Avenue - Barclays Center

By popular demand, I have started to document the Atlantic Avenue - Barclays Center station. This station is no joke! This is my second trip, and we will keep counting...

Curved stair case following the shape of the corner building on Hanson Pl x Flatbush

Curved stair case following the shape of the corner building on Hanson Pl x Flatbush

Parallel to 2 / 3 / 4 / 5 platforms, connections to LIRR

Parallel to 2 / 3 / 4 / 5 platforms, connections to LIRR

Second draft (pencil x hand) on first draft (computer x cad)

Second draft (pencil x hand) on first draft (computer x cad)

BEHIND THE SCENES - CREATING THE X-RAY SERIES

Last week was an exciting week for Project Subway! I released my new x-ray series and was thrilled to get some generally positive feedback. Thank you all for your love and support! Check out the coverage by CityLab and Gothamist if you haven't already :)

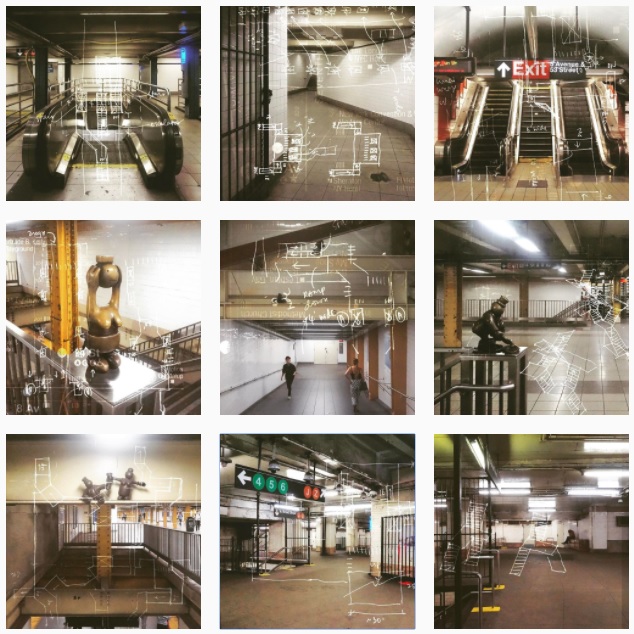

Since a few people have asked, I would like to share with you a little bit about my process. For the first part where I survey and sketch the stations, you can read about it here

For the new series, I first download a 3D model of the city from cadmapper. Let me use the Union Square drawing as an example:

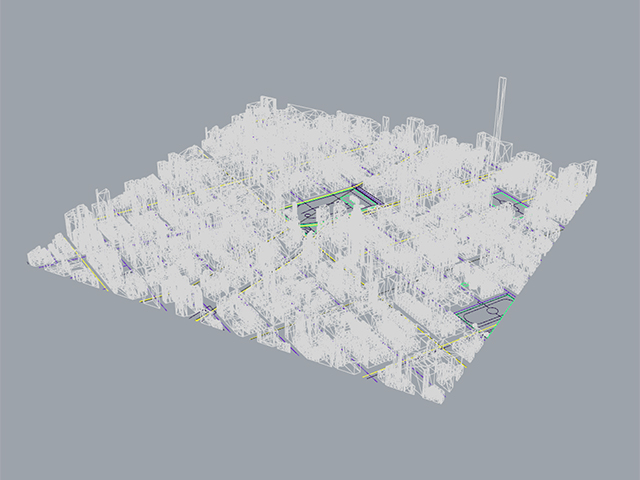

3D model from cadmapper.com (you can download up to 1 square km for free)

3D model from cadmapper.com (you can download up to 1 square km for free)

Then I find an angle that could work:

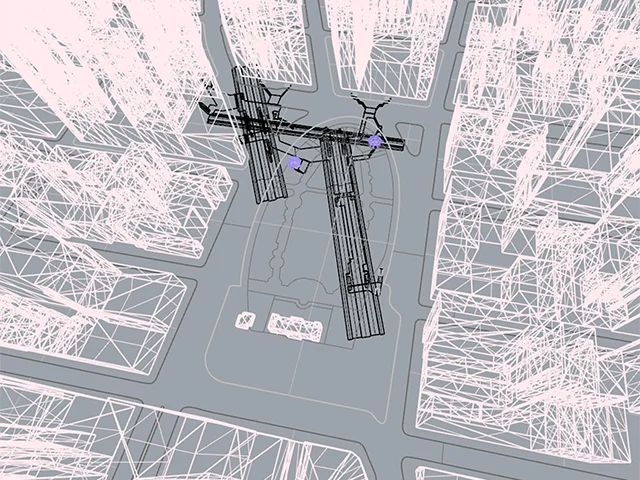

And I import the station model I made from before:

Then I go to Google Maps and get a general feel of the area, including trees, the configuration of the park, and the buildings:

Then I do some research on specific landmarks and transfer that detail into my drawing, for example, this clock thing (it's called the metronome) that always keeps people wondering:

metronome (source:  wikipedia )

metronome (source: wikipedia)

Then I export the lines into illustrator and edit the line weights:

x ray process 08.jpg

Then I layer texture, streets, platform colors, people, and street names:

Textured underlay

Textured underlay

Translucent white indication of streets

Translucent white indication of streets

Colored platforms according to train lines

Colored platforms according to train lines

Added little people for scale

Added little people for scale

And finally street names and business names

And finally street names and business names

And that was it! I repeated this process for all five images I made, took a few months!

3D TRACK MAP TRAIL #2

Work in Progress -

NYC Subway 3D Track Map - Downtown

NYC Subway 3D Track Map - Downtown

NYC Subway 3D Track Map - Midtown and Midtown West

NYC Subway 3D Track Map - Midtown and Midtown West

I tried to model the entire area of Manhattan below Central Park in 3D but turns out the lines are too thin and the changes in elevations look to subtle when you zoom out in a bird's-eye view. So I had to exaggerate the width of the tracks. But after rebuilding the 2D lines in Rhino the lines look so wiggly, so it looks a little weird now. I will try to make a cleaner and neater version!

NEW PRINTS ARE HERE!!

I am excited and proud to share that the new batch of four prints are finally here! This batch includes four stations from downtown: Delancey Street - Essex Street (F / M / J / Z), Chambers Street - Park Place - World Trade Center (A / C / E / 2 / 3), Chambers Street - Brooklyn Bridge - City Hall (J / Z / 4 / 5 / 6), and Bleecker Street - Broadway - Lafayette Street (B / D / F / M / 6). I have to say, once the stations are not on numbered streets and avenues, I found it way harder to wrap my head around things - but I did it!

Check them out in our gallery and shop page! Apply promo code DOWNTOWN to get 10% off all orders.


Delancey - Essex

Delancey - Essex

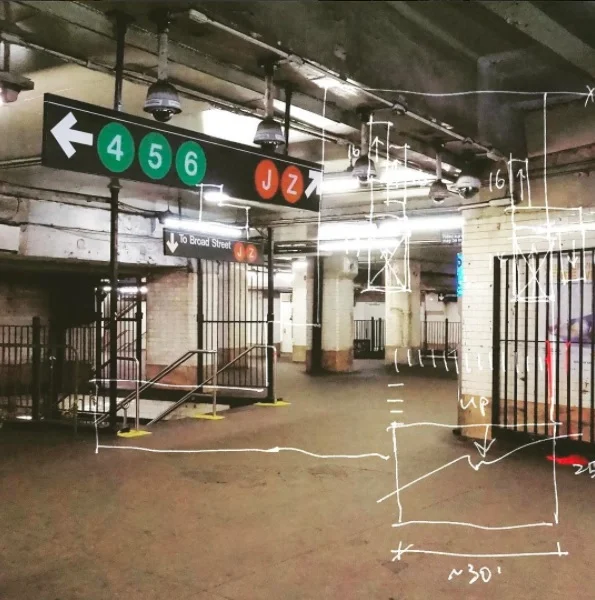

Brooklyn Bridge - City Hall

Brooklyn Bridge - City Hall

Broadway - Lafayette

Broadway - Lafayette

World Trade Ceter

World Trade Ceter

Stations, Escalators, and High Fives

Like other stations on 53rd street, the 53rd Street - Lexington Avenue station is a really deep one. Look at the sketch and the numbers I wrote down, there are 5+ sections of stairs of 15 steps each that lead you to the E/M tracks - that's more than 3 stories in one run of escalator (and that only brings you to the mezzanine! You'll have to go up one more to reach ground).

Giant Escalator in 53rd Street - Lexington Avenue Station

Giant Escalator in 53rd Street - Lexington Avenue Station

Sketch of Stair and  Escalator in 53rd Street - Lexington Avenue Station

Sketch of Stair and  Escalator in 53rd Street - Lexington Avenue Station

And then I suddenly thought to myself, that looks familiar - that's where the "imrpov everywhere" people did the "high five escalator"!

This is another example of how understanding these circulation spaces in the stations can offer so many interesting opportunities.

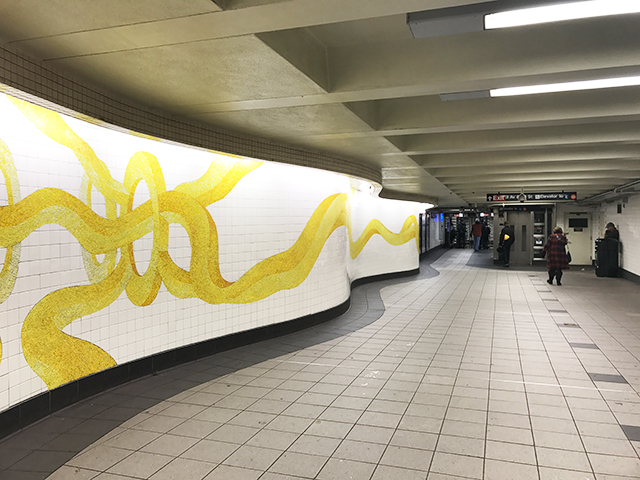

And when you reach the top of it, there is a really beautiful, yellow mural on a curvy wall:

Mural at 53rd Street - Lexington Avenue Station

Mural at 53rd Street - Lexington Avenue Station

Mural at 53rd Street - Lexington Avenue Station

Mural at 53rd Street - Lexington Avenue Station

Sketch of Mezzanine Level at 53rd Street - Lexington Avenue Station

Sketch of Mezzanine Level at 53rd Street - Lexington Avenue Station

ON SUBWAY TILES

In an architecture office, the term "subway tile" is mostly used to describe a standard, white, rectangular tile that's 6" (wide) x 3" (high). As I take a closer look at the subway stations in the city, I realized the 4 3/8" x 4 3/8" square tile is just as, if not more common, than the 6 by 3 one. They look like this:

Here is their scale in relation to a person:

6" x 3" rectangular vs. 4 3/8" square subway tile

6" x 3" rectangular vs. 4 3/8" square subway tile

And in context:

6" x 3" subway tile in Columbus Circle Station

6" x 3" subway tile in Columbus Circle Station

4 3/8" square subway tile in Times Square Station

4 3/8" square subway tile in Times Square Station
